원자력 발전소 430 ~ 480 Ton Steam Generator

Unloading bay 기존 Column 위에 Skid Rail을 설치장소인 Pedestal 과 floor에 Skid Rail 설치.

Skid Rail 위에 600ton 능력의 Moving Gantry를 조립, L180 Strand Jack 4기를 사용하고

Skid Rail 높이까지 인양 후 150ton Hilman Roller 4개와 L15 Pulling Jack 2기를 사용하여 이동한다.

We set up the Temporary Support on the Column of the Building to install the Skid Rail to the top of the Unloading bay.

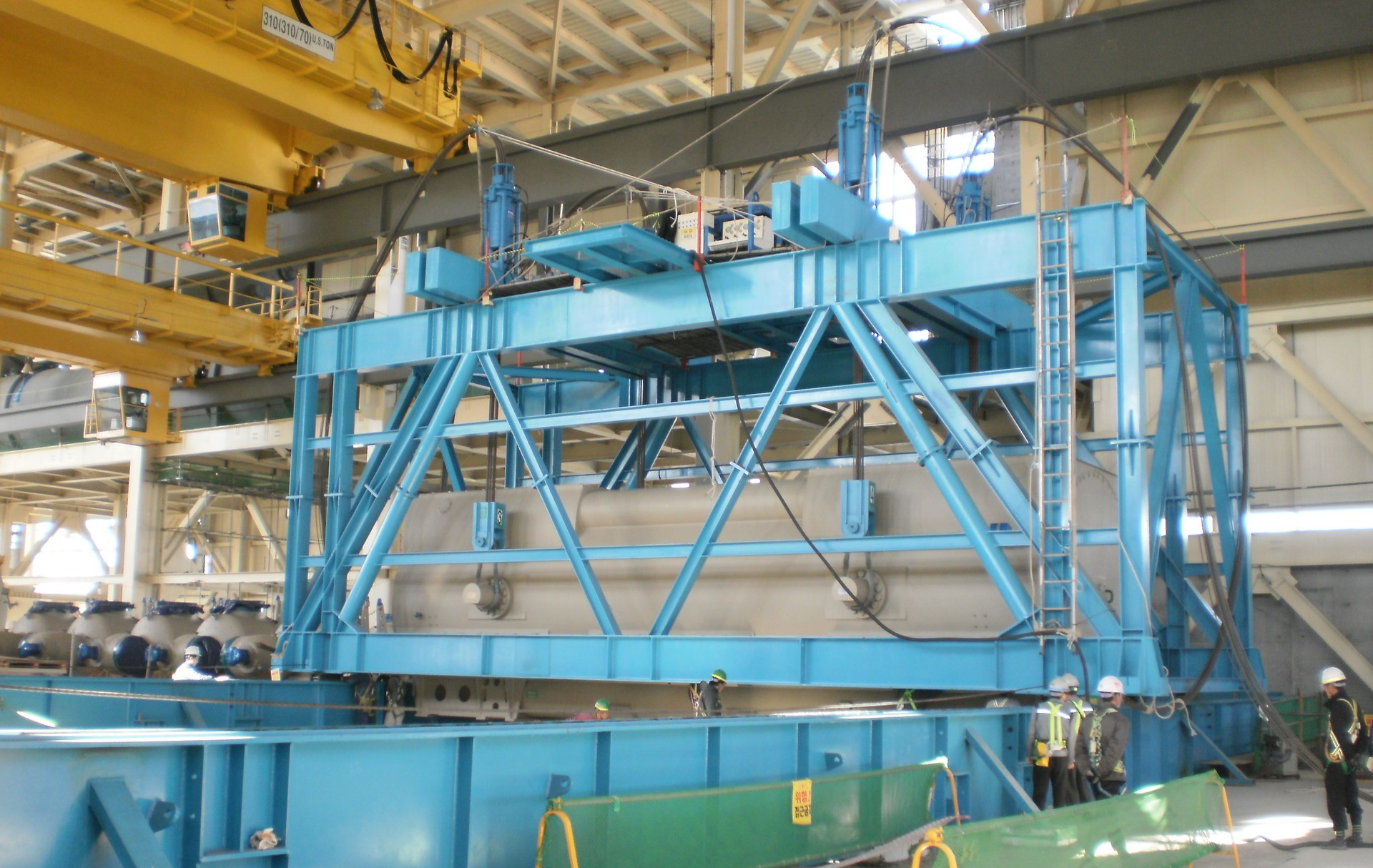

We established the Moving Gantry with the capacity of 600 tons.

After pulling it up to the height of safe point in the Building by using the fourth L180 Strand Jack Instrument, We performed the moving task of installment by using the second L15 Pulling Jack & the four Hillman Rollers with the capacity of 150 tons.

신고리, 신한울 원자력 발전소NPP(Nuclear Power Plant)

UAE BARAKAHNPP(Nuclear Power Plant)
