PSC KOREA

보령 신복합, 안동 복합

VERTICAL MODULE LIFTING No.1~6

TOTAL 6x3=18sets, Weight 3,321Ton

Hot Beam Top Level – L100 Strand jack System 20set & Computer control system (EL50,000)

Transporting Module A,B,C step by step to the bottom of the SPMT HRSG Building

Lifting beam Insert & 1m Lift next Module A+B+C = Composite

Module No.6 step by step plate connection lift up with No.1 Procedure Same repeat operationOUT SIDE CASING LIFTING

OUT SIDE CASING LIFTING

Hot Beam Top Level – L100 Strand jack System 8~12set & Computer control system

Right / Left Panel Lift – Lift up by connecting Right & Left Panels No.1 ~ 10

Front / Rear Panel Lift – Lift up by connecting Front & Rear Panels No.1 ~ 10

군산 복합, 여수 LG

VERTICAL MODULE 설치 No.1~4

TOTAL 4x3=12sets, Weight 1,600Ton

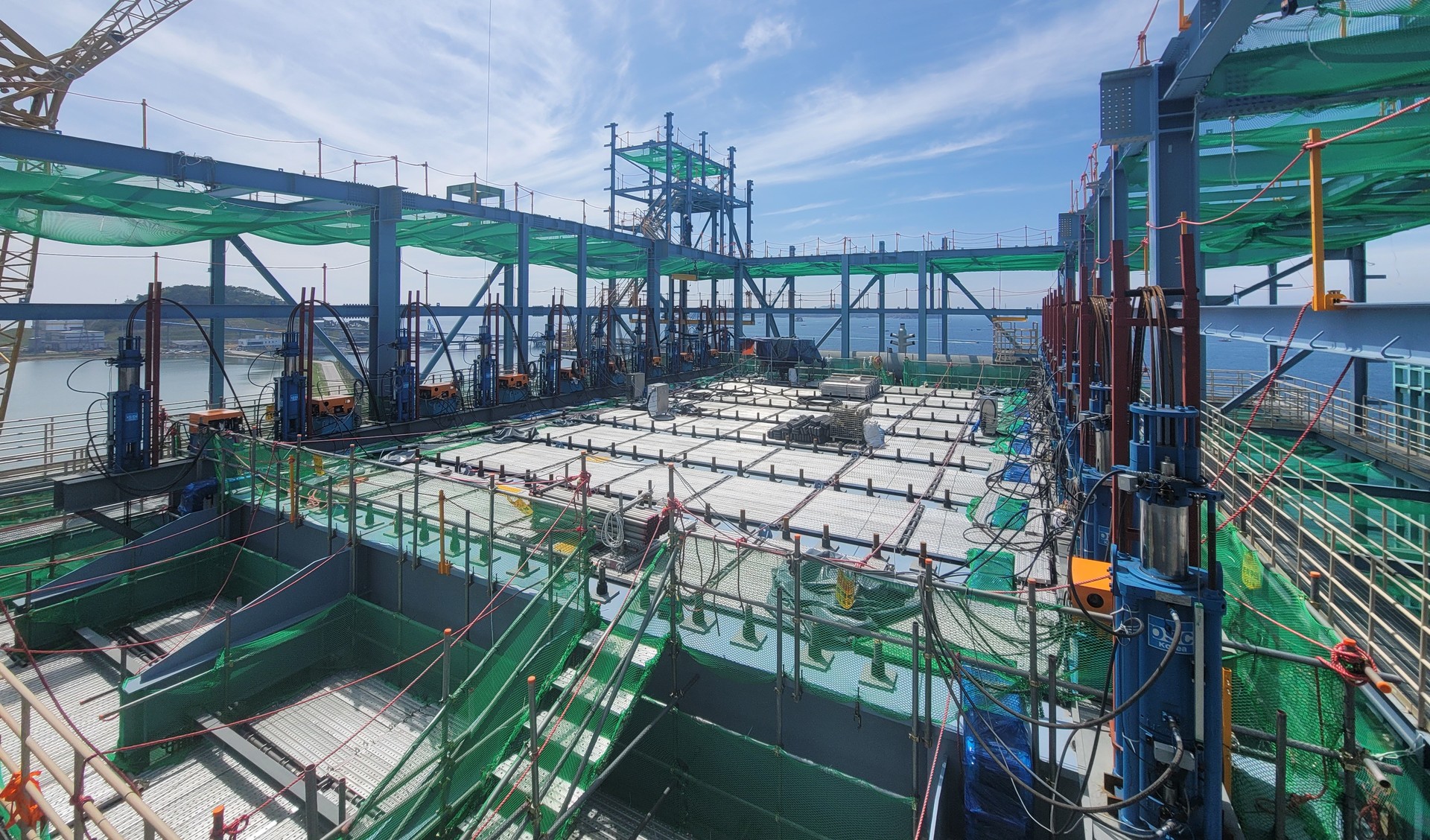

Hot Beam Top Level L100 Strand jack 30ea setting (EL 45,000)

Module entry with SPMT under HRSG Building

Step) A Line No.1~4 Module connect vertically with link plates sequentially

Step) B & C No.1~4 Modules lift up in the same way Step) A+B+C line Module Horizontal Connection

OUT SIDE CASING LIFT UP

Right / Left Panel Lift – Lift up by connecting Right & Left Panels No.1 ~ 10

Front / Rear Panel Lift – Lift up by connecting Front & Rear Panels No.1 ~ 10

군산 복합 화력 발전소CCPP(Combined Cycle Power Plant)

인천 복합 화력 발전소CCPP(Combined Cycle Power Plant)

보령 신복합 발전소CCPP(Combined Cycle Power Plant)

안동 복합 화력 발전소CCPP(Combined Cycle Power Plant)
